Liquid Ring Vacuum Pump

Liquid ring vacuum pump an improved concept in liquid ring technology devloped. These pumps are design to handle water, liquid, air, gas etc.

APPLICATION: Vacuum Filtration, Moisture Extraction, Evaporation, Vacuum Distillation, Vacuum Condensation, Ash handling, Mineral Beneficiation.

MATERIAL OF CONSTRUCTION: Cast Iron, Partial Stainless steel, SS304, SS316, Bronze, Gun Metal, Rubber Line As per process Requirement

SALIENT FEATURES: Simple & Rugged Construction trouble free operation easily handle dust laden gases

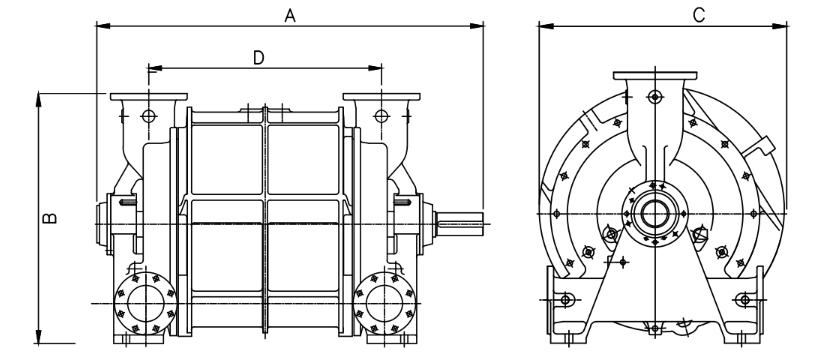

Model	A	B	C	D	Suction	Discharge
LMP-300	902	483	394	448	3”	2.5”
LMP-400	1026	571	495	540	4”	3”
LMP-650	1219	660	609	678	5”	4”
LMP-900	1384	809	762	739	6”	4”
LMP-1250	1508	914	838	908	6”	5”
LMP-2250	1660	914	838	1058	6”	5”
LMP-3000	1727	1117	1003	1030	8”	6”
LMP-4000	1955	1244	1209	1314	10”	8”
LMP-6000	2413	1927	1467	1429	12”	10”
LMP-9000	2413	2302	1785	1562	14”	12”
