With over 25 years of manufacturing expertise in liquid ring pumps, as a part of continuous development, LEELAM has developed the L-Series Vacuum Pump. These pumps are highly energy efficient compared to the previous models. By making internal modifications to cones, impeller and improving the internal flow channels, it was possible to reduce the energy requirements by up to 10%.
APPLICATION: Vacuum Filtration, Moisture Extraction, Evaporation, Vacuum Distillation, Vacuum Condensation, Ash handling, Mineral Beneficiation.
MATERIAL OF CONSTRUCTION: Cast Iron, Partial Stainless Steel, SS304, SS316, Bronze, Gun Metal, Rubber Lined as per process requirement.
RANGE: Capacity: Up to 21000 M3/Hr, Vacuum: Up to 710 mmHg, Pressure: Up to 1.2 Kg/Cm2g.
SALIENT FEATURES: Simple & Rugged Construction, trouble-free operation, easily handles dust-laden gases.
Technical Specifications

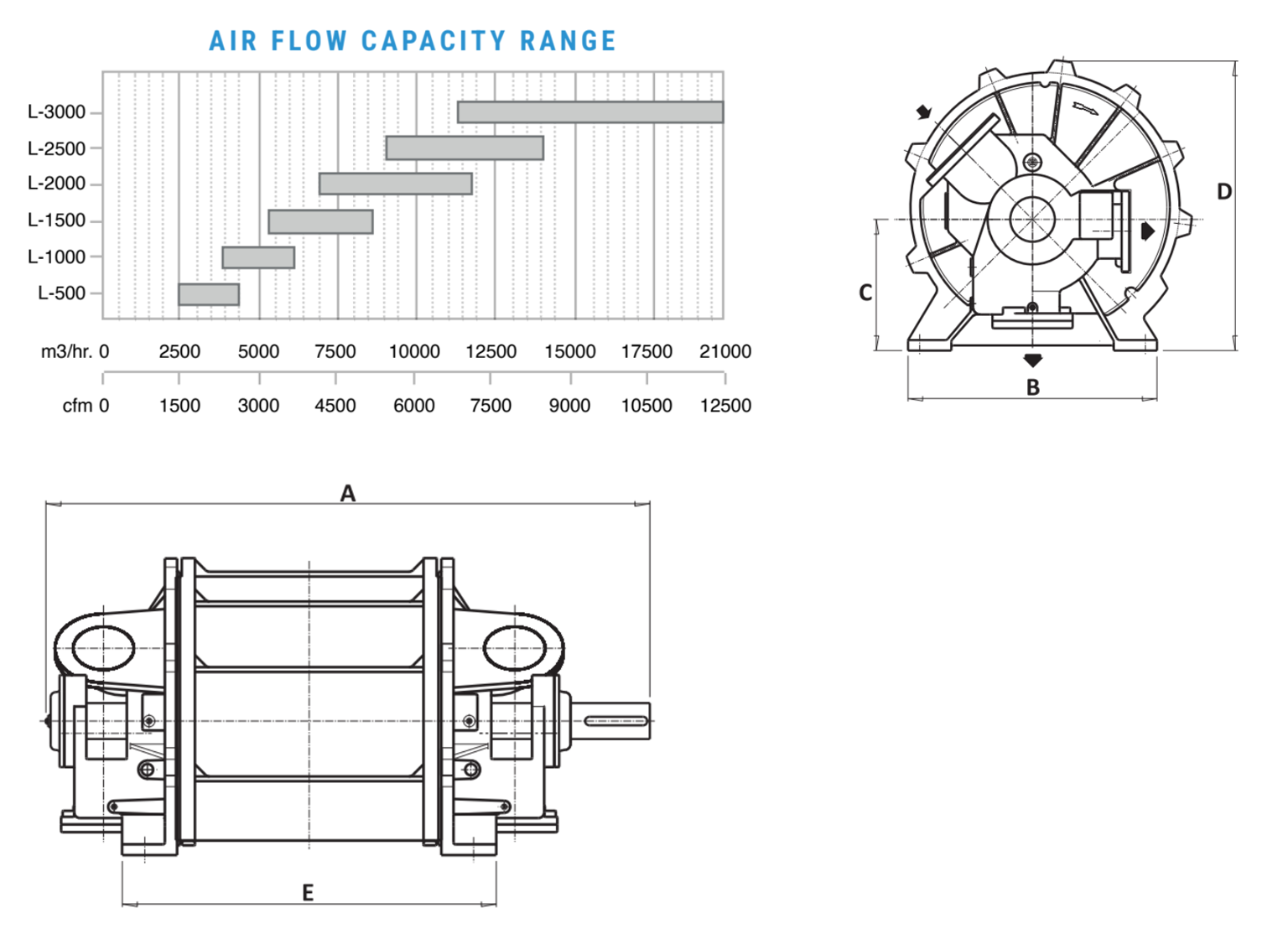

DIMENSIONS / KEY SIZES
| Model | Intel NB | Outlet NB | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| L-500 | 200 | 150 | 1790 | 718 | 405 | 850 | 1205 |
| L-1000 | 200 | 150 | 2018 | 600 | 425 | 942 | 1342 |
| L-1500 | 250 | 200 | 2296 | 914 | 483 | 1020 | 1495 |
| L-2000 | 250 | 200 | 2525 | 1064 | 256 | 1185 | 1565 |
| L-2500 | 250 | 200 | 2834 | 1064 | 560 | 1185 | 1870 |
| L-3000 | 350 | 300 | 3195 | 1296 | 700 | 1525 | 2162 |
