Cement Feeding System (Screw Pump) includes a pressurized seal and bearing assembly that extends the service life of the discharge seals by preventing the material being handled from entering the bearing area.
APPLICATION: Filtration Process, Priming & Drying, terilization, Conveying, Venting & Sucking, Moisture Extraction
MATERIAL OF CONSTRUCTION: Cast Iron, SS304, SS316, Bronze, Gun Metal, Rubber Line As per process Requirement
RANGE:
Capacity : 175 M3/hr. to 1500 M3/hr.
Vacuum : 680 mm of Hg.
Power : 7.5 HP to 50 HP
SALIENT FEATURES: Simple & Rugged Construction trouble free operation easily handle dust laden gases
Technical Specifications

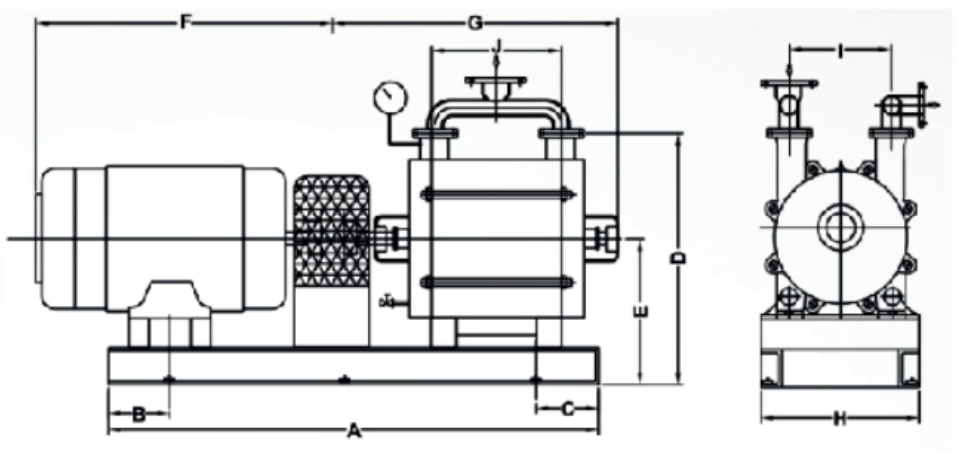

DIMENSIONS / KEY SIZES
| Model | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| LML-7 | 1000 | 150 | 150 | 515 | 310 | 470 | 690 | 320 | 240 | 205 |
| LML-10 | 1000 | 150 | 150 | 515 | 310 | 508 | 725 | 320 | 240 | 240 |
| LML-15 | 1100 | 150 | 150 | 515 | 310 | 581 | 860 | 320 | 240 | 375 |
| LML-20 | 1100 | 150 | 150 | 515 | 310 | 625 | 890 | 320 | 240 | 400 |
| LML-30 | 1300 | 150 | 150 | 590 | 370 | 720 | 960 | 340 | 250 | 420 |
| LML-50 | 1500 | 150 | 150 | 685 | 325 | 820 | 1030 | 400 | 250 | 450 |
| LML-60 | - | - | - | - | - | - | - | - | - | - |
| LML-100 | - | - | - | - | - | - | - | - | - | - |
TECHNICAL SPECIFICATIONS
| Model | Max Cap (M3/Hr.) | WAT. REQ. (LPM) | Max. MOTOR (KW) |
|---|---|---|---|
| LML-7 | 175 | 15 | 7.5 / 1450 |
| LML-10 | 250 | 18 | 10 / 1450 |
| LML-15 | 360 | 22 | 15 / 1450 |
| LML-20 | 470 | 27 | 20 / 1450 |
| LML-30 | 750 | 35 | 30 / 980 |
| LML-50 | 1300 | 45 | 50 / 980 |
| LML-60 | 1700 | 70 | 60 / 740 |
| LML-100 | 2050 | 75 | 50 / 740 |
